Ross Ultrix - die ultimative Kreuzschiene
Softwaredefinierte Router Plattform

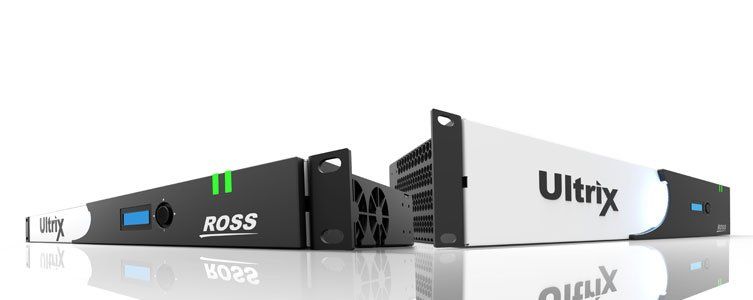

Der preisgekrönte Ultrix 12G Router ist die ultimative Routing, Multiviewer und Signalverarbeitungsplattform für Studios, Ü-Wagen und Flypacks. Als einzige softwaredefinierte Plattform realisieren Kunden erhebliche Kosten-, Raum- und Energieeffizienz bei beispielloser Flexibilität und Agilität, insbesondere im Vergleich zu konkurrierenden Hybrid-Routern.
Features

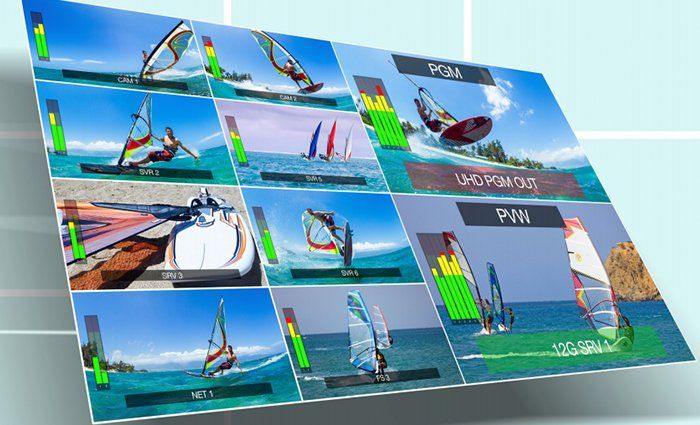

Umfangreiche Multiviewer-Funktionen
Bis zu 24 unabhängige Multiviewer-Heads in einem einzigen 5HE-Chassis. Jeder Head unterstützt bis zu 100 Pips. Völlig unabhängig und individuell steuerbar für höchste Flexibilität.
Leistungsstarke Audioverarbeitung und Routing
Bis zu 3k x 3k Audio-Routing- und Verarbeitungsfunktionen werden standardmäßig mit Ultrix geliefert. Bis zu 2k x 2k embedded und 1k x 1k discrete audio unterstützt. Routen, Verarbeiten und Konfigurieren bis hinunter zu einem Monokanal, unabhängig von den I/O.
Freundlicher Support
Unser Supportteam sorgt täglich für reibungslose Abläufe. Sie erhalten stets die gewünschte Hilfe.
Spezifikationen
| Dimensionen | 1RU | 2RU | 5RU |
|---|---|---|---|
| Width | 17.5″ | 17.5″ | 17.5″ |
| Depth | 7.9″ | 7.9″ | 7.9″ |
| Height | 1.74″ | 3.48″ | 8.7″ |
| Frame Weight (approx) | 9 lbs (4.08 kg) | 12lbs (5.44 kg) | 6.35 kg (14 lbs) |
| I/O Card Weight (approx per board) | 3 lbs (1.36 kg) | 3 lbs (1.36 kg) | 3 lbs (1.36 kg) |
| Inventory | 1RU | 2RU | 5RU |
|---|---|---|---|
| Video Matrix Size (max) | 36×36 | 72×72 | 160×160 |
| Default I/O Slots | 1 (16×16 HD BNC + 2 AUX I/O Ports) | 1 (16×16 HD BNC + 2 AUX I/O Ports) | None |
| Optional I/O Slots using ULTRIX-HDB-IO | 1 (16×16 HD BNC + 2 AUX I/O Ports) | 3 (48×48 HD BNC + 6 AUX I/O Ports) | 9 (16×16 HD BNC + 2AUX I/O Ports) slots 1-8 FLEX slot 16×16 HD BNC only |
| Optional I/O Slots using ULTRIX-IP-IO | N/A | N/A | 9 (x4 25G QSFP + 2 SFP I/O Ports) |
| Audio Matrix Size (with Optional MADI SFP’s) | 768×768 | 1536×1536 | 3456×3456 |
| Ultriscape MV Head License per Slot | 3 SDI | 3 SDI | 3 SDI or 2 IP |
| Maximum Ultriscape MV heads per System | 6 SDI | 12 SDI | 27 SDI or 18 IP |
| UHD licenses per Frame | 1 | 1 | 1 |
| Maximum UHD Gearboxes per System | 6 in/6 out | 12 in/12 out | 27 in/27 out |
| Maximum number of 3Gb/s input frame syncs per system | 36 | 72 | 160 |
| Maximum number of 12Gb/s clean/quiet outputs per system | 36 | 72 | 160 |
| SONSTIGES | 1RU | 2RU | 5RU |
|---|---|---|---|
| PSU (default) | 1 external brick | 2 external brick | 1RU external frame |
| Optional Redundant PSU (additional) | 1 external brick | 2 external brick | 1RU external frame |
| Fan Module | 1 | 2 | 5 |
| INPUT SPECIFICATION-ULTRIX-HDB-IO | 1RU | 2RU | 5RU |
|---|---|---|---|
| Standard Input | HD BNC | HD BNC | HD BNC |
| Signal Type | SDI Formats 270 MB/s 1.5 GB/s 3.0 GB/s 12 GB/s | SDI Formats 270 MB/s 1.5 GB/s 3.0 GB/s 12 GB/s | SDI Formats 270 MB/s 1.5 GB/s 3.0 GB/s 12 GB/s |
| Impedance | 75 Ohm | 75 Ohm | 75 Ohm |
| Max Input Level | 880 mV | 880 mV | 880 mV |
| Return Loss | Per SMPTE 2082-1 | Per SMPTE 2082-1 | Per SMPTE 2082-1 |
| Equalization | UHD: 60m 3G: 180m HD: 200m SD: 400m | UHD: 60m 3G: 180m HD: 200m SD: 400m | UHD: 60m 3G: 180m HD: 200m SD: 400m |
| SFP Aux Connector | optional | optional | optional |
| OUTPUT SPECIFICATION-ULTRIX-HDB-IO | 1RU | 2RU | 5RU |
|---|---|---|---|
| Standard Output | HD BNC | HD BNC | HD BNC |
| Signal Type | SDI Formats 270 MB/s 1.5 GB/s 3.0 GB/s 12 GB/s | SDI Formats 270 MB/s 1.5 GB/s 3.0 GB/s 12 GB/s | SDI Formats 270 MB/s 1.5 GB/s 3.0 GB/s 12 GB/s |
| Impedance | 75 Ohm | 75 Ohm | 75 Ohm |
| Amplitude | 800mV +/- 10% | 800mV +/- 10% | 800mV +/- 10% |
| Rise & Fall Time | 270 MB/s: 400-800ps 1.5 & 3GB/s: < 135ps 12GB/s: <45ps | 270 MB/s: 400-800ps 1.5 & 3GB/s: < 135ps 12GB/s: <45ps | 270 MB/s: 400-800ps 1.5 & 3GB/s: < 135ps 12GB/s: <45ps |
| DC Offset | 0.0V +/- 10% | 0.0V +/- 10% | 0.0V +/- 10% |
| Overshoot | < 10% | < 10% | < 10% |
| Jitter | <0.2UI Alignment (up to 3G) <0.3 UI Alignment (12G) <.2UI Timing (up to 270M) <1UI Timing (1.5G) <2UI Timing (3G & 12G) | <0.2UI Alignment (up to 3G) <0.3 UI Alignment (12G) <.2UI Timing (up to 270M) <1UI Timing (1.5G) <2UI Timing (3G & 12G) | <0.2UI Alignment (up to 3G) <0.3 UI Alignment (12G) <.2UI Timing (up to 270M) <1UI Timing (1.5G) <2UI Timing (3G & 12G) |
| Return Loss | Per SMPTE 2082-1 | Per SMPTE 2082-1 | Per SMPTE 2082-1 |
| SFP Aux Connector | Optional | Optional | Optional |
| EMBEDDED AUDIO SPECIFICATIONS | 1RU | 2RU | 5RU |
|---|---|---|---|
| Audio Channels per I/O | 16 | 16 | 16 |
| CARD SPECIFICATION-ULTRIX-IP-IO | 5RU |
|---|---|
| Standard Output | (4) 25GE SFP28 |
| Video Streams per Card | UHD: 4+4 redundant, 8 non-redundant 6G: 4+4 redundant, 8 non-redundant 3G/HD: 16+16 redundant, 16 non-redundant |
| Video Format Support | 720p: 25/ 29.97/ 30/ 50 / 59.94 / 60 1080i 50 / 59.94 / 60 1080p 25/ 29.97/ 30/ 50 / 59.94 / 60 2160p 25/ 29.97/ 30/ 50 / 59.94/60 |
| IP Transport Standard Support | SMPTE ST 2110 suite, including: – 10, System Timing and Definitions – 20, Uncompressed Active Video – 30, PCM Digital Audio VSF TR-03 AES67 |
| System Timing and Reference | PTP Slave (SMPTE 2059, AES67 and IEEE-1588 default profiles) |
| Control and Setup | NMOS IS-04 and IS-05 for AIMS-compliant discovery, registration and connection control EmBER+ discovery, registration and connection control from popular 3rd-party systems Provisioning and monitoring via DashBoard and/or our published JSON API |
